​Over the years I have built many accessories for my stations. Here are some of the notables

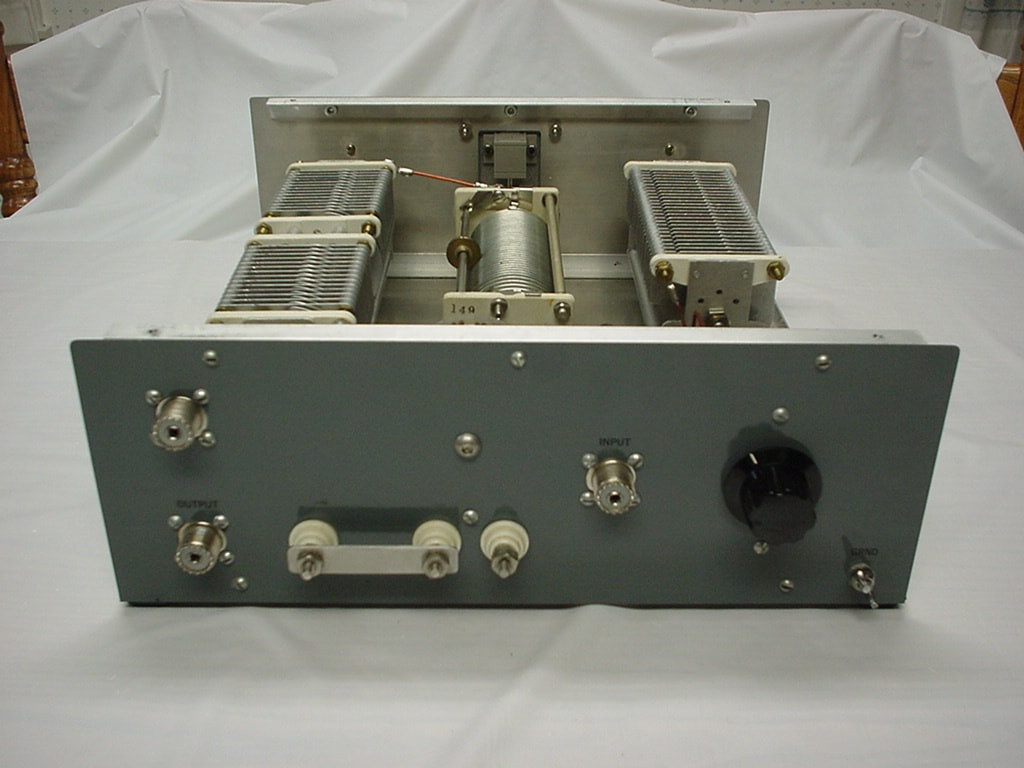

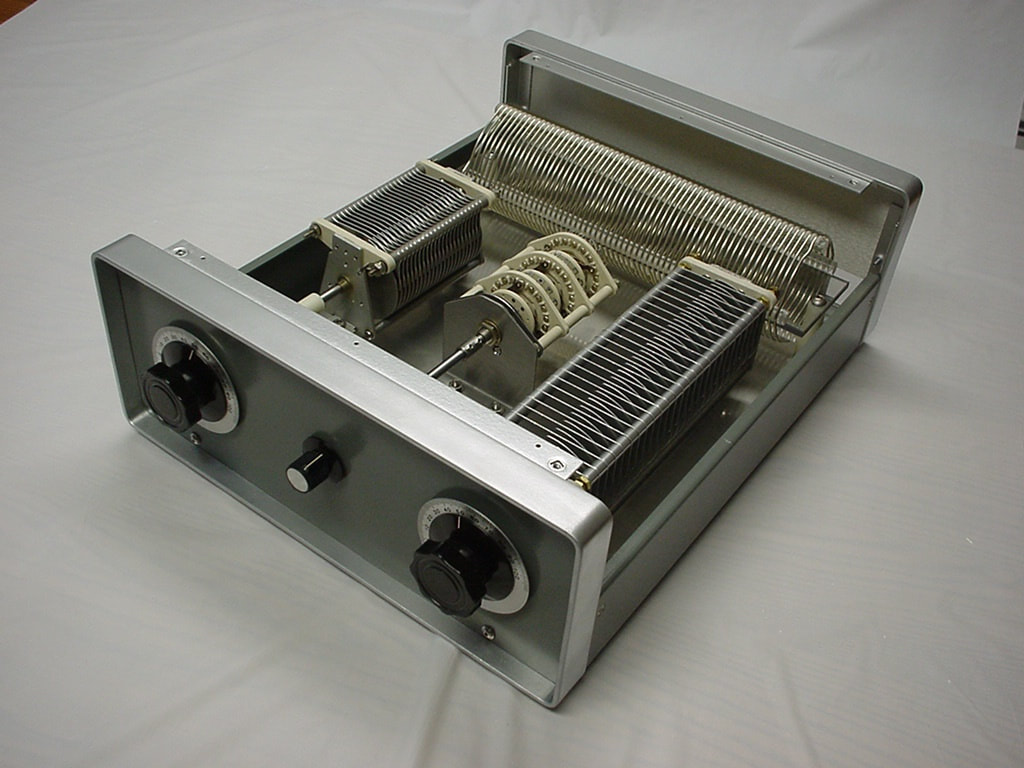

PictureSPC Transmatch from an article by W1FB in 1986

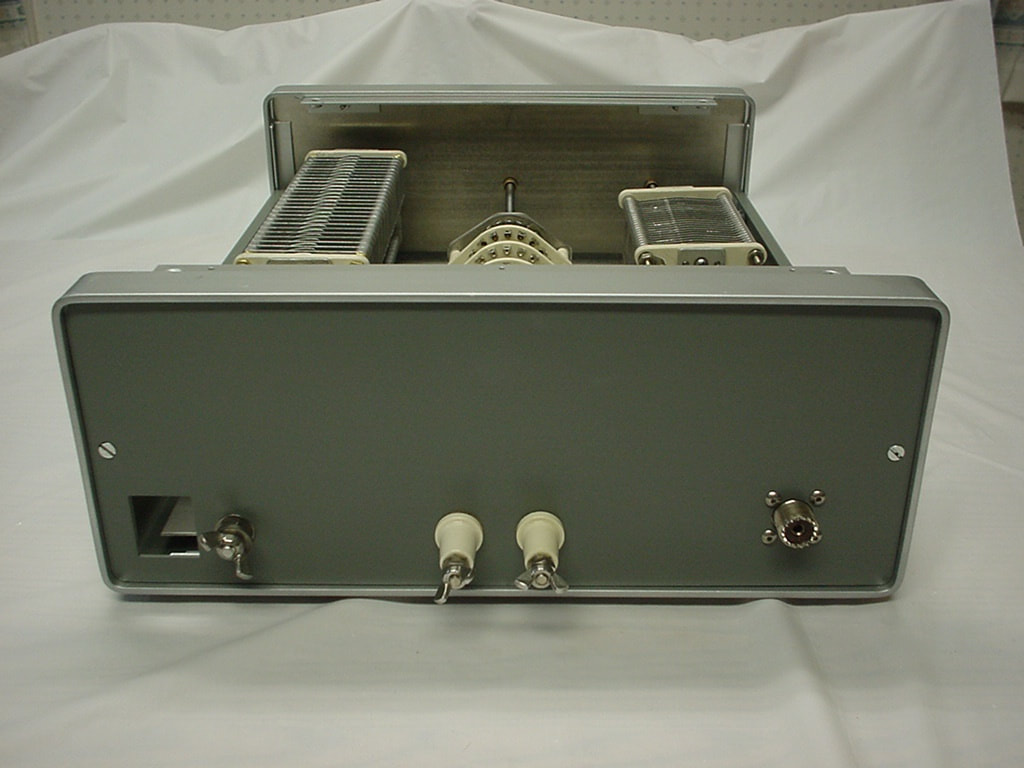

SPC Tuner Rear Panel

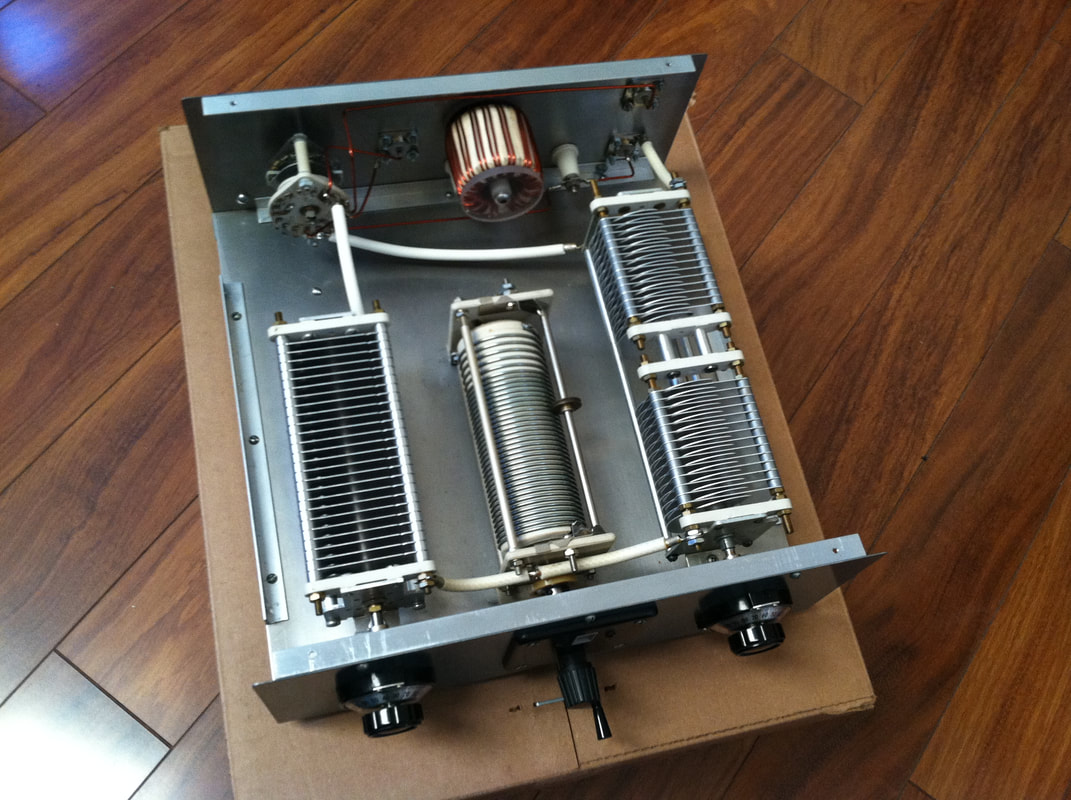

Link-coupled transmatch from a design by W1SE from 1985. Not yet completed in this picture.

Link Coupled Tuner Rear Panel

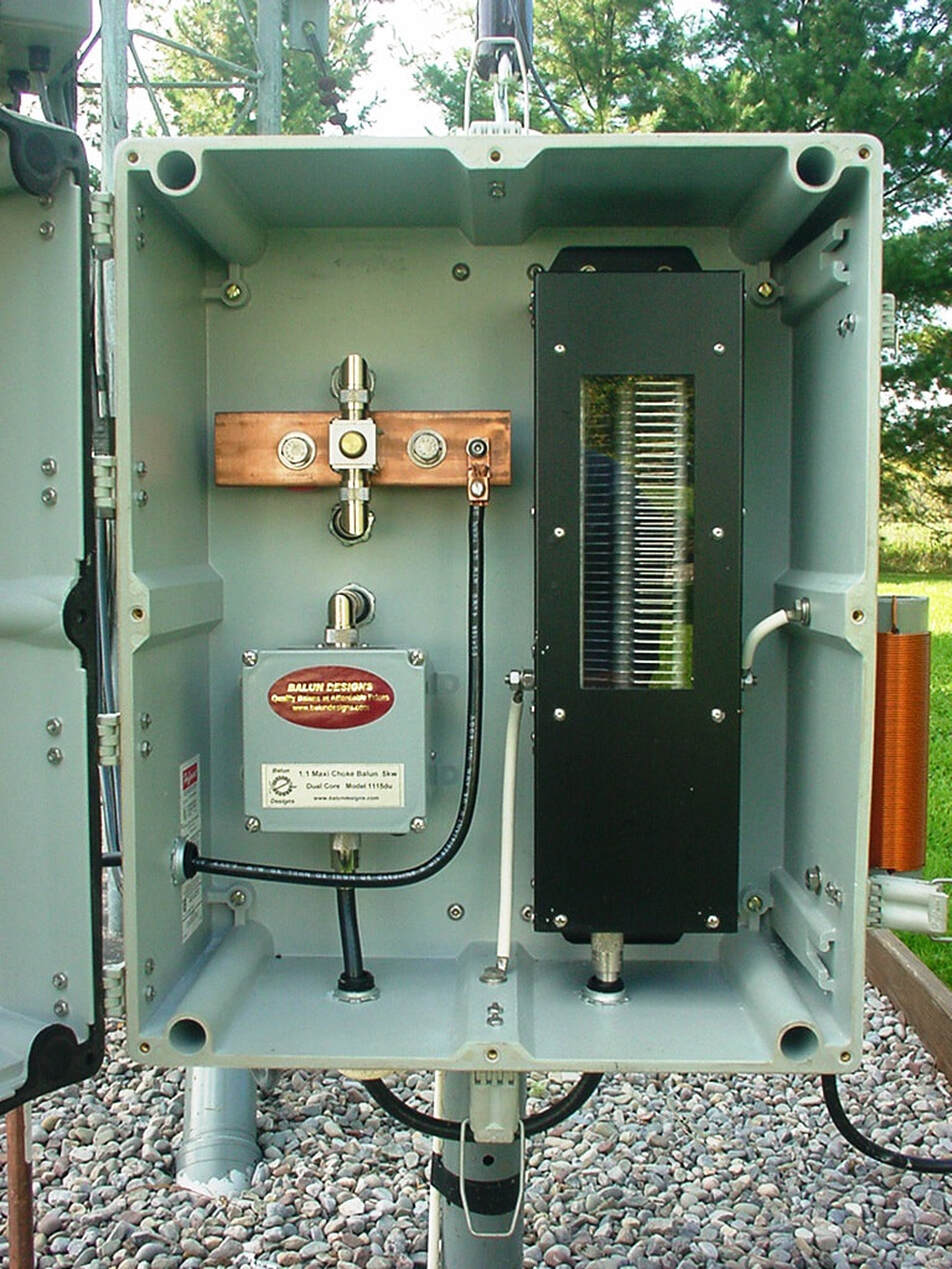

160 meter controller used on my 160 meter inverted-L antenna. Heath-Kit SA-2550 motor-driven 500pf capacitor, Alpha-Delta Arc-Plug arrestor, Balun Designs Maxi-choke balun and Array-Solutions bleeder inductor. Built in 1994

DMR Hotspots

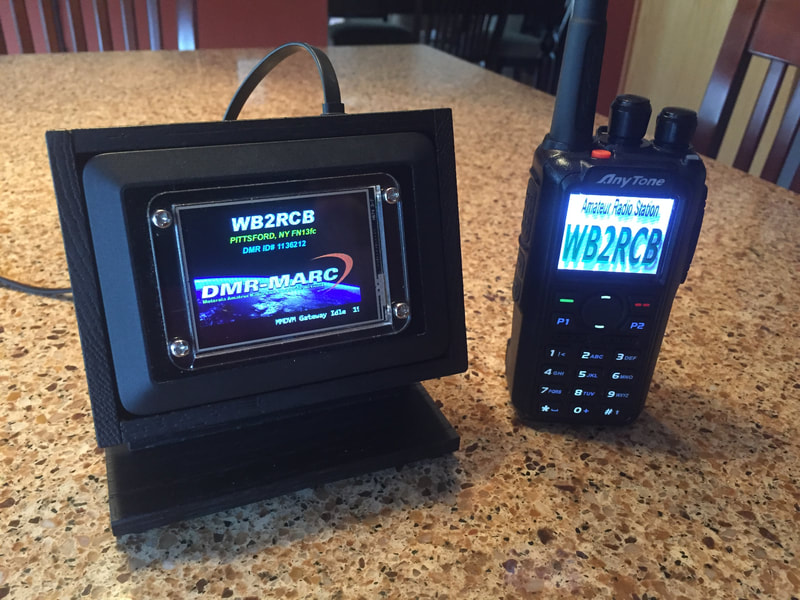

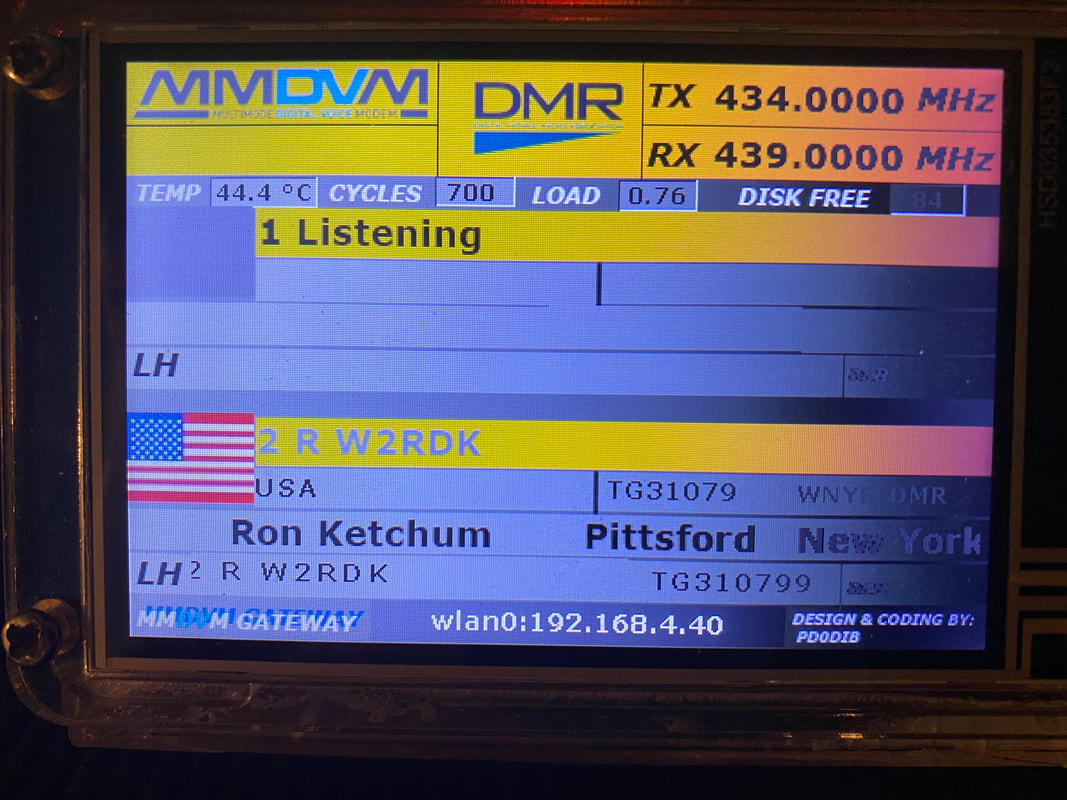

PictureN5BOC Simplex DMR Hotspot using a 2.4 " Nextion screen (Idle Mode)
​

​
​

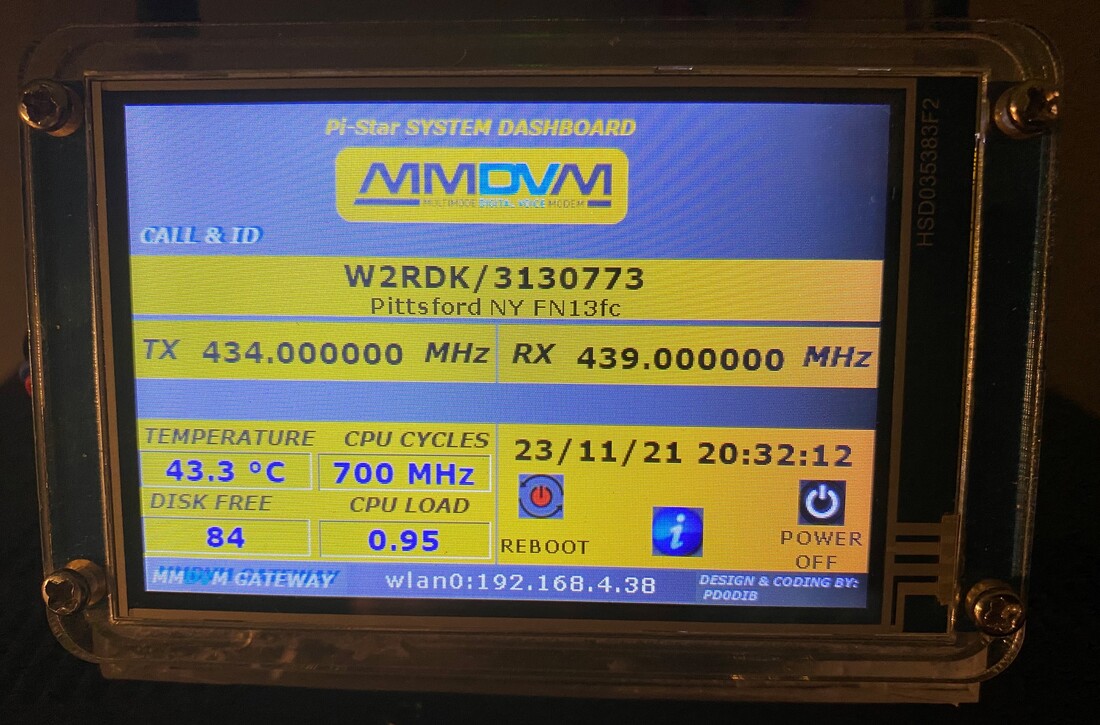

N5BOC Duplex DMR Hotspot using a 3.5" Nextion screen (Recieve Mode)

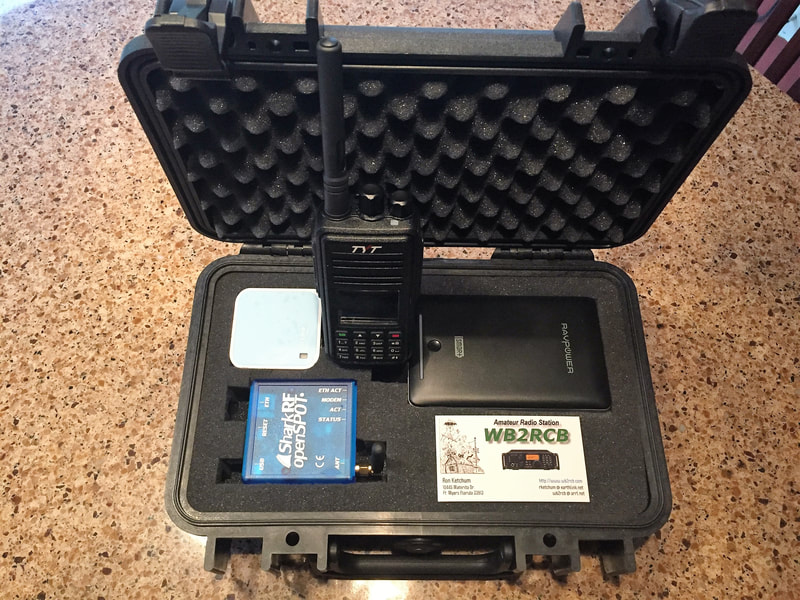

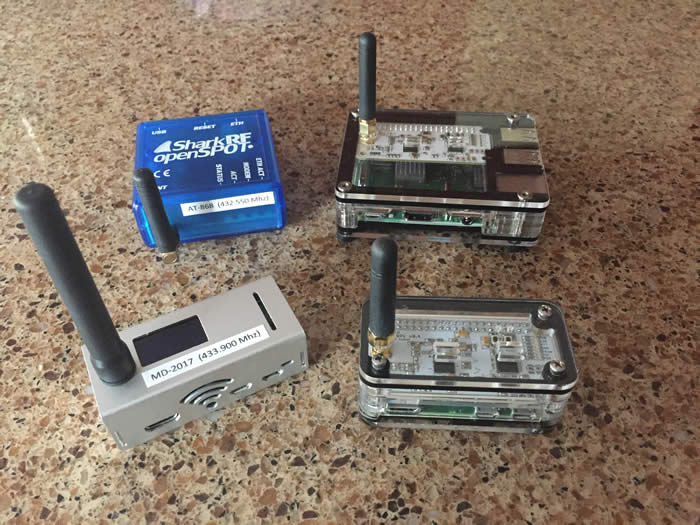

Other hotspot's I built and a portable DMR go-box​

43' Vertical w/AD5X Matching Network

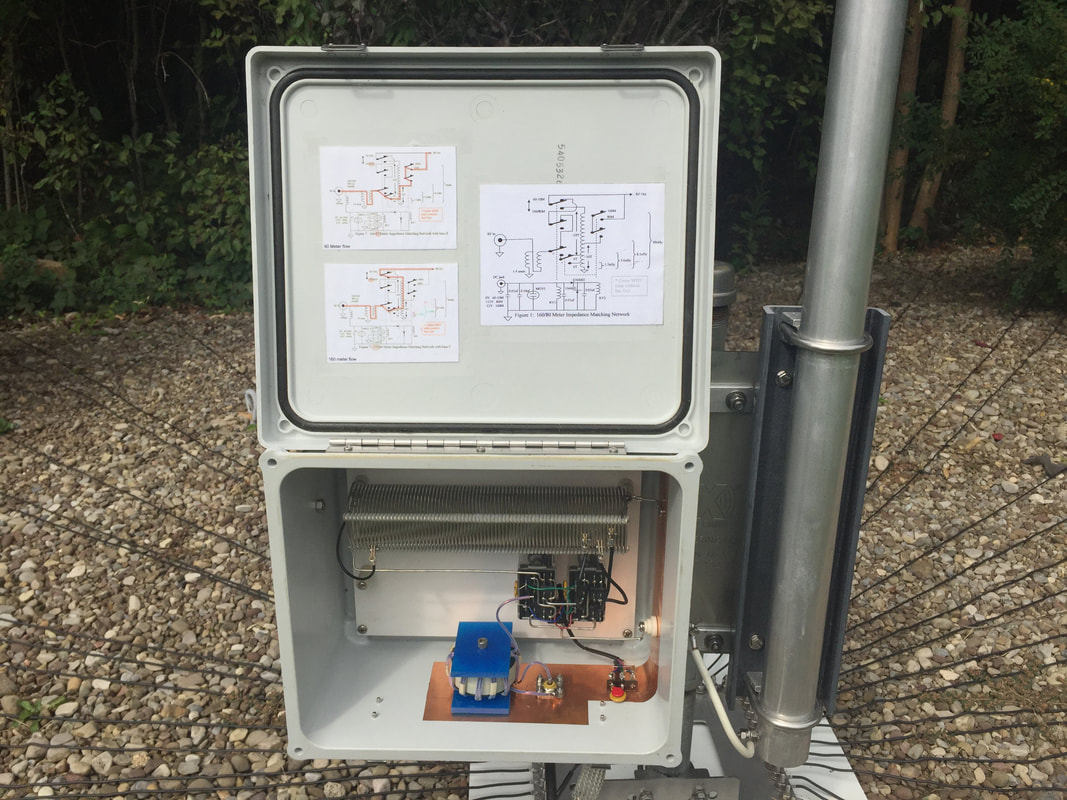

Final assembly

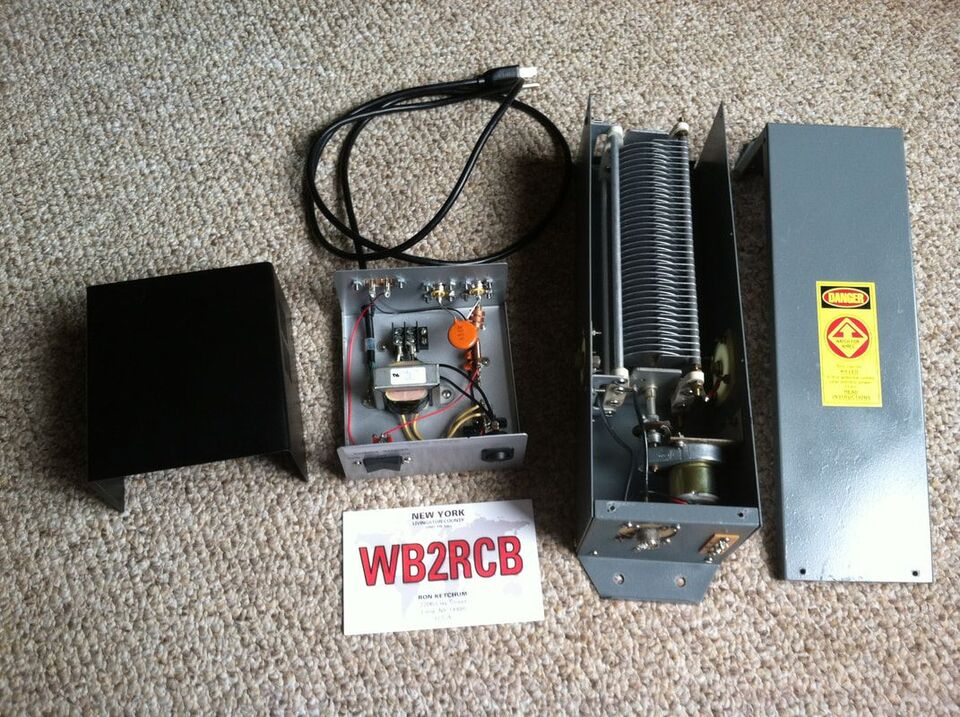

Heath-Kit SA-2550 controller. This was an e-bay find without the control box. I built one and sold the unit for a nice profit. Built in 2012

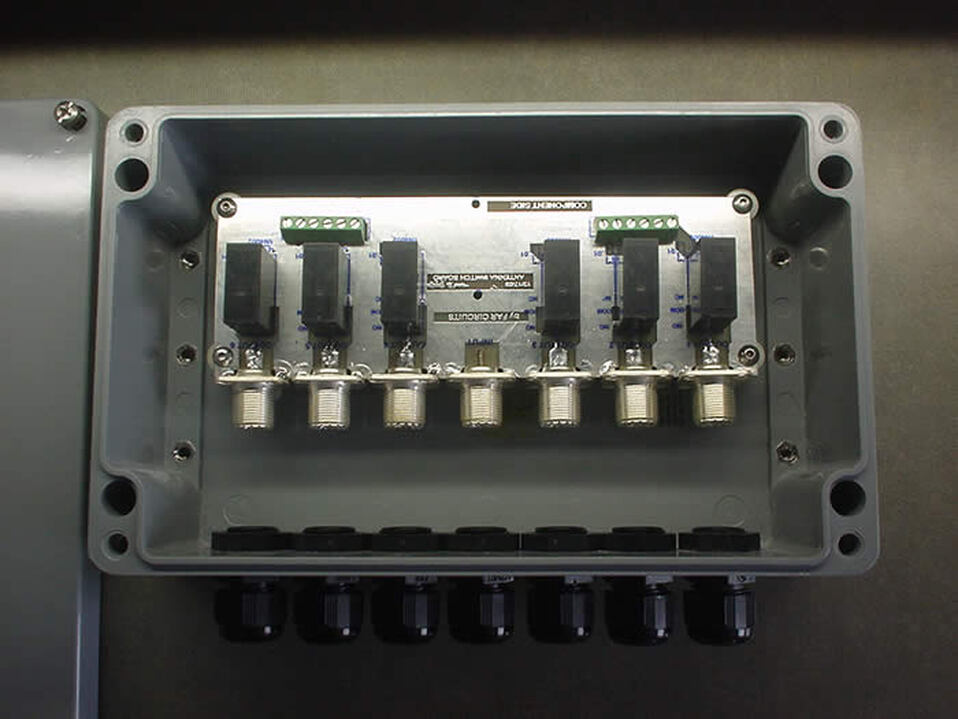

Six-position antenna switch from a design by KO4NR - Not yet completed in this picture

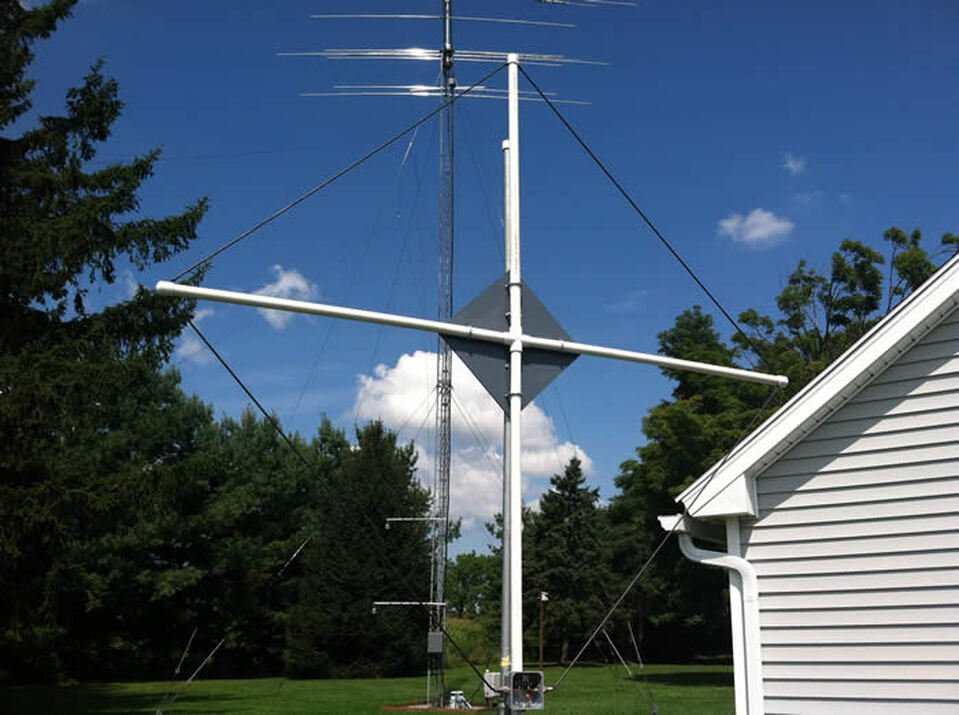

160 meter receiving loop from a design by W1FB from 1974

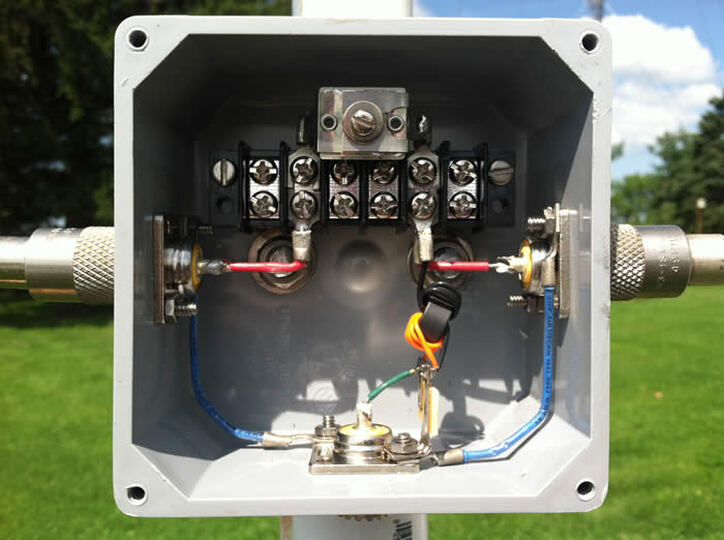

Matching circuitry for the 160 meter receiving loop
